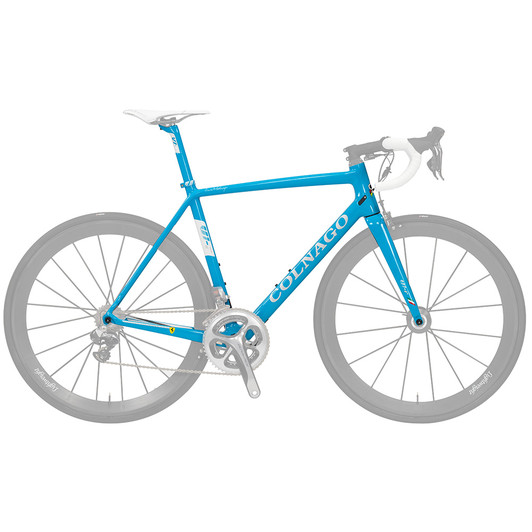

Colnago V1-r Limited Edition Frameset (Sloping Geometry)

YOUR PRICE: £ 3,399.95
Choose Product Options

1 in stock, ready to dispatch.

UK Next Working Day delivery available if ordered before 3pm. Deliveries are made Monday to Friday, excludes Bank Holidays. Saturday delivery also available if ordered before 1pm Friday.

Add to Basket


Besides stunning looks the Colnago V1-r Limited Edition Frameset offers the premium monocoque carbon fibre frame with aerodynamic tube sections and full carbon drop outs. this makes this an incredibly stiff and responsive frameset, ready to take on whatever challenges you want to face on a bike.

Collection  UK  EU  Worldwide

Price Match

Colnago V1-r Limited Edition Frameset (Sloping Geometry)

The Colnago V1-r Limited Edition Frameset (Sloping Geometry) is the new frame from Colnago, designed for cyclists who are particular about their bike’s weight-to-performance ratio. The V1-r frameset is made with the highest quality carbon fibre, which was selected in cooperation with Ferrari hence the Cavallino logo on each frame. A monocoque frame with aerodynamic shaped tube sections and full-carbon rear dropouts - the V1-r is the best monocoque frame produced in Colnago’s sixty year history.

All the tube shapes on this frame, including the fork legs and the rear triangle, have been tested and studied in the wind tunnel to minimise drag. The result of this testing has been utilised in the design and creation of the Colnago V1-r Frameset giving the best optimised solution, which maximises flexural and torsional rigidity and at the same time minimises aerodynamic drag and crosswind, represented by the truncated sections of the tubes.

Another major innovation found on the Colnago V1-r Frameset is represented by the use of stiffer, stronger, lighter, carbon fibre monocoque dropouts and an internal replaceable derailleur hanger. The advantages in terms of strength and weight are significant compared to the equivalent solution adopted in the past on the Colnago M10. Inside the right dropout there is the hole for the rear derailleur cable, suited for both mechanical and electronic groupset.

The V1-r’s fork is also a new concept, designed and structured to support the integrated front brake body. It has a double hole to accommodate the dual pivot system for direct mounting. The design also incorporates the shapes of the other tubes with the truncated profiles. The base measures 1 “1/4, while the remainder is 1 1/8”. A valuable detail is the conical carbon fibre head, on which is located the headset bearing. Tolerances allow the mounting of tires up to a maximum size of 28 mm. As with all Colnago forks the tips are made of forged-and-machined aluminium to better withstand repeated mounting and dismounting on roof racks.

To increase the rigidity of the bottom bracket portion of the frame, without increasing the thickness of the tube walls and, consequently, frame weight, the Colnago V1-r uses tubes with larger sections. Therefore, the width of the bottom bracket area has also been increased. Colnago recommend using the Colnago Threadfit82.5 patented proprietary standard BB (not included) compatible with all the Pressfit 86.5 BB versions, the Threadfit82.5 adds two new cups that are easily removable significantly adding to the longevity of the frame as well as offering more stiffness, better reliability and ease of maintenance.

The new Colnago V1-r Frameset also comes with a special, dedicated seatpost. Using the proven forged aluminium head of the models currently in production, Colnago proceeded to design and build a tube of small diameter (approx. 27.2 mm) for maximum comfort and an aerodynamic truncated profile to ensure maximum penetration of the air. This results in a seatpost that offers more comfort and an aerodynamic advantage.


  • Carbon fibre monocoque frame
  • UCI approved
  • Front fork with aluminium dropouts
  • Carbon fibre monocoque dropouts
  • Integrated aerodynamic seatpost (27.2mm)
  • Headset included


FRAME: Colnago V1-r carbon fibre monocoque

FORK: Colnago full carbon V1-r

HEADSET: Colnago

BOTTOM BRACKET: Threadfit82.5

SEAT POST: Colnago Aero 27.2mm


Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
