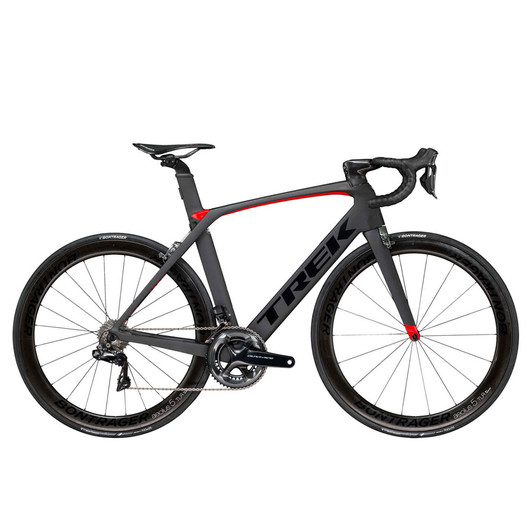

Trek Madone 9.9 C H2 Road Bike 2017

MSP £ 9,000.00 , Save 22%
£ 7,000.00
Choose Product Options
Size Guide

In stock, assembled on order

For the ultimate in speed, power, aerodynamics and ride quality, choose the Trek Madone 9.9 C H2 Road Bike 2017. Engineered for unprecedented performance, this bike is constructed from 600 series OCLV for the perfect balance of frame weight and stiffness and the IsoSpeed decoupler increases vertical compliance so you can rider harder and faster, for longer. Shimano's Dura-Ace Di2 electronic components perfectly complement the Madone, offering fast, reliable and precise shifting at the touch of a button.

Trek Madone 9.9 C H2 Road Bike 2017

The Trek Madone 9.9 C H2 Road Bike 2017 has been optimised for aerodynamic, high-speed efficiency and offers the ultimate in technical performance features throughout the frame and components.

600 series OCLV (Optimum Compaction Low Void-process) is Trek's patented carbon fibre process and has resulted from over 25 years of research and experience. Using the highest quality raw materials, Trek's exacting manufacturing process and weight-saving performance-enhancing technology results in the optimum balance of weight and stiffness, critical to how a bike performs, in terms of efficiency, handling and ride feel. The frames vertical compliance increases rider comfort and weight is minimised by using the exact amount of material required in different areas of the frame - no more, no less.

The IsoSpeed decoupler offers a more forgiving ride with no compromise on pedalling efficiency. The seat tube is able to rotate independently of the top-tube-to-seatstay junction, or 'decouple', further increasing vertical compliance. This technical revolution has come about from research into the performance of a bike over rough roads and how this impacts its rider. Introducing this technology allows the bike to move with the road, dampens vibrations and reduces fatigue whilst still maintaining its efficiency and predictable handling.

The H2 fit is the ideal geometry for most riders, including many professionals, to optimise power and performance. The KVF aerodynamic tube shapes and fork enhance aerodynamics, minimising drag and increasing lateral stiffness for sharp handling.

Electronic Shimano Dura-Ace Di2 components offer the ultimate, top-level performance with precise and reliable shifting at the touch of a button. The Integrated Trek Madone direct-mount brakes integrate seamlessly into the frame for sleek aesthetics and reduced drag.

Internal cable routing, with Vector wings to protect the front cables and front brake caliper, provide sleek and aerodynamic performance. The combination of aero bar and stem has the lowest drag profile ever developed and with the Blendr-compatible stem, you can clip your Garmin or other accessories directly on for a clean look.

The Bontrager Aeolus 5 D3 Tubeless Ready wheelset is aerodynamic and durable and complements the Madone perfectly and the accompanying tyres are a great all-rounder with low rolling resistance and great handling.


  • The all-new Madone sets a new benchmark for race performance
  • IsoSpeed decoupling offers the best vertical compliance and aerodynamics
  • A Shimano Dura-Ace Di2 electronic groupset offers the ultimate in speed and precise, reliable shifting at the touch of a button. More compact lever hoods enhance comfort and control and the Di2 battery is hidden in the frame for a clean fresh look
  • The H2 fit is optimal for most riders for power and performance
  • The KVF tube shape complements the Madones ultimate integration - a lightweight and super aerodynamic frame to outclass every competitor
  • KVF fork with aero legs to minimise drag, and unique carbon dropouts reduce weight and increase lateral stiffness for ultra-precise handling
  • The aero bar/stem combination is fully integrated into the frame for the sleekest, lowest drag profile ever developed
  • The micro adjust seatmast is light, strong, super aero and easy to use

Please note: The image is shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.

  • FRAME: Trek 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2 tapered head tube, BB90, invisible cable routing, control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
  • FORK: Trek Madone KVF full carbon, carbon E2 tapered steerer, carbon dropouts, integrated brake and stem
  • HEADSET: Trek Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
  • STEM: Trek Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts
  • HANDLEBAR: Trek Madone XXX Integrated Bar/Stem, KVF profile, invisible cable routing, OCLV Carbon, VR-CF
  • FRONT BRAKE: Trek Madone aero, integrated
  • REAR BRAKE: Trek Madone aero, integrated
  • BRAKE LEVERS: Shimano Dura-Ace Di2 9070 STI levers
  • FRONT DERAILLEUR: Shimano Dura-Ace Di2, braze-on
  • REAR DERAILLEUR: Shimano Dura-Ace Di2
  • SHIFT LEVERS: Shimano Dura-Ace Di2, 11-speed
  • CASSETTE: Shimano Dura-Ace, 11-28, 11-speed
  • CRANKSET: Shimano Dura-Ace, 50/34 (compact)
  • FRONT WHEEL: Bontrager Aeolus 5 D3 Tubeless Ready
  • REAR WHEEL: Bontrager Aeolus 5 D3 Tubeless Ready
  • FRONT TYRE: Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x25c
  • REAR TYRE: Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x25c
  • SADDLE: Bontrager Montrose Elite, titanium rails
  • SEATPOST: Trek Madone Micro-adjust carbon seatmast cap, 25mm offset
  • WEIGHT: 6.87kg (size 56cm)
