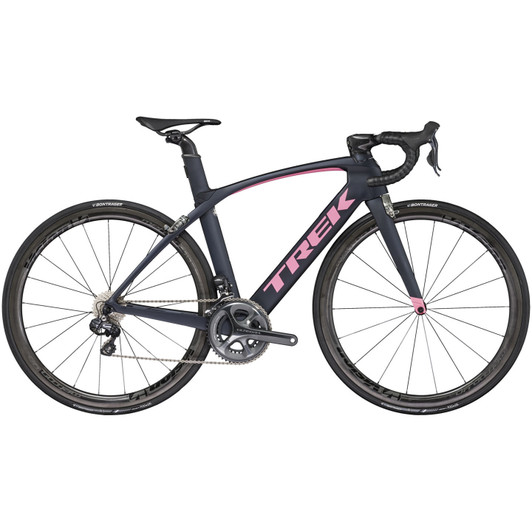

Trek Madone 9.5 C Womens WSD Ultegra Di2 Road Bike 2017

£ 6,500.00
Choose Product Options
Size Guide

In stock, assembled on order

The Trek Madone 9.5 C Womens WSD Ultegra Di2 Road Bike 2017 exudes performance, speed and aerodynamics like no other bike. Combining Trek's Kammtail Virtual Foil engineered frameset with integrated aerodynamic brakes and handlebars, alongside Shimano's Ultegra Di2 electronic shifting, makes this a pro-level package.

Trek Madone 9.5 C Womens WSD Ultegra Di2 Road Bike 2017

Race-ready and proven to perform at the top of the sport; the Trek Madone 9.5 C Womens WSD Ultegra Di2 Road Bike 2017 has an aerodynamic pedigree that is difficult to top.

Trek’s renowned 600 Series OCLV Carbon frame with KVF (Kammtail Virtual Foil) tube shaping is one of the stiffest carbon layups on the market, producing an incredibly high strength to weight ratio that’s ready to take on anything you throw at it. Madone’s IsoSpeed is what really sets it apart from the competition, though.

The IsoSpeed technology is evident within the rear end and fork of the Madone 9.5 C and as soon as you plant yourself on the saddle, you’ll feel the difference. The rear IsoSpeed decoupler separates the seatmast from the frame, allowing the seatmast to move independently from the rest of the bike, absorbing all the bumps and vibrations the road has to offer.

The rear decoupler is also completely adjustable depending on personal preference and/or what type of ride you’re on. Simply unscrew the lower bottle cage bolt, which determines the compliance of IsoSpeed, and slide the rear of the seatmast up or down. Less compliance is perfect for short, high-intensity efforts in the saddle on smooth roads, whilst more compliance is aimed towards longer rides, such as gran fondos and long days in the saddle.

Used in the fork, IsoSpeed here differs from the system found in the frame. Instead of an IsoSpeed decoupler, the fork has increased vertical compliance to take the brunt of whatever surface you’re riding on.

The Trek Madone 9.5 C Womens WSD Ultegra Di2 Road Bike 2017 has more to it than a frame, and with it being equipped with Shimano Ultegra Di2 6870 components, a wheelset fit for a World Tour rider and a saddle that could power a Paris-Roubaix favourite to the podium without affecting his comfort, the Madone is ready for anything you throw its way.

Trek’s decision to use a Shimano Ultegra Di2 6870 drivetrain definitely fits the Madone 9.5's high specification. Its reliability is unparalleled, whilst the shifting is so fast and easy on the hands, you’ll be working your way through the gears with ease. The 11-28 cassette offers a huge range of gearing options, wide enough to power you up the climbs and speed down the descents.

Using Vision Metron 40 LTD wheels, Trek have been able to carry on their theme of keeping things ultralight and ultra-strong. Combining these wheels with Bontrager’s R3 Hard-Case Lite 700x25c clincher tyres produces confidence inspired descending and climbing in every weather situation, pushing grip and cornering to the next level.

Finished with a unique blue and pink colour scheme, this bike is ideally suited to the female rider who is looking for performance, comfort and aerodynamics that would not look out of place in the pro peloton.


  • The all-new Madone sets a new benchmark for race performance
  • The IsoSpeed offers the best vertical compliance and aerodynamics
  • Every detail is designed for ultimate integration and speed
  • Make it yours: completely customizable through Project One

Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.

  • FRAME: Trek 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2 tapered head tube, BB90, invisible cable routing, control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
  • FORK: Trek Madone KVF full carbon, carbon E2 tapered steerer, carbon dropouts, integrated brake and stem
  • HEADSET: Trek Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
  • STEM: Trek Madone XXX Integrated bar/stem, OCLV Carbon, 7 degree, aero top cap pocket, w/computer and light mounts
  • HANDLEBARS: Trek Madone Integrated Bar/Stem, KVF Profile, invisible cable routing, OCLV Carbon, VR-CF
  • BAR TAPE: Bontrager Supertack tape
  • FRONT BRAKE: Madone aero, integrated
  • REAR BRAKE: Madone aero, integrated
  • BRAKE LEVERS: Shimano Ultegra Di2 9070, 11-speed
  • FRONT DERAILLEUR: Shimano Ultegra Di2 9070, 11-speed braze-on
  • REAR DERAILLEUR: Shimano Ultegra Di2 9070, 11-speed
  • SHIFT LEVERS: Shimano Ultegra Di2 9070, 11-speed
  • CASSETTE: Shimano Ultegra, 11-28, 11-speed
  • CHAIN: Shimano Ultegra 11-speed
  • CRANKSET: Shimano Ultegra 6800, 50/34 (compact)
  • FRONT WHEEL: Vision Metron 40 LTD
  • REAR WHEEL: Vision Metron 40 LTD
  • FRONT TYRE: Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x25c
  • REAR TYRE: Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x25c
  • SADDLE: Bontrager Ajna Pro, carbon rails
  • SEATPOST: Madone Micro-adjust carbon seatmast cap, 25mm offset
