Trek Madone 9.2 C H2 Road Bike 2016

This item is no longer available to buy. Click here to view similar products

£ 3,250.00

The latest addition to the Madone range, the Trek Madone 9 Series H2 Frameset 2016 gives you the perfect blend of aerodynamics, ride quality and integration without compromising comfort. Finished with the brilliant Ultegra eleven speed drivetrain you understand why this range has such an illustrious Grand Tour pedigree.

Trek Madone 9.2 C H2 Road Bike 2016

The Madone series has been at the cutting edge of bicycle design for years now, earning it many yellow jerseys along the way. This latest Trek Madone 9.2 C H2 Road Bike 2016 looks set to add to that at an incredible pace.

The H2 fit is a geometry that suits most riders. With a good balance between an all out racing position and a more relaxed one. This makes the bike ideal for racing but also more than capable of racking up long miles on.

600 Series OCLV Carbon fibre makes up the body of the frame itself. This advanced aerospace material not only saves weight, it also elicits a ground-breaking level of balance and stiffness so you can trust the bike in every situation on the road.

Looking to fully maximise aerodynamics within the UCI's regulations, the Madone 9 Series Frameset features an unprecedented level of integration with internal cable routing and an integrated front brake. The brake in enclosed in the Vector Wing, which obfuscates the cabling for the best possible wind tunnel readings.

On the top of the top tube the integrated control centre houses the barrel adjusters or battery ports for an electronic drive train. The positioning of the control centre means it is easily accessible while also tucked away for the best possible aerodynamics.

Trek have also redesigned the seat mast for an even greater level of adjustment and comfort. The system is ultra-lightweight and aero and allows you to adjust the seatpost hight millimetre by millimetre for a precise and efficient level of accuracy. The IsoSpeed decoupler boosts vertical compliance in the seat tube enhances comfort while also maximising the amount of power you can generate through the pedals without vertical flex.

Other exquisitely designed features include the Aero 3S chain keeper, which contributes to flawless shifting performance without the threat of a dropped chain off the inside ring. The Madone 9 Series is DuoTrap S compatible and has precision water bottle mounts that offset drag.

Trek have continued their close working relationship with Bontrager to kit this superb bike out in appropriately high quality gear. The Paradigm RL saddle features hollow titanium rails, whilst the Paradigm Elite wheels are tubeless ready and respectably light as well as being finished off nicely with R3 Hard-Case Lite aramid bead 700x23c tyres.

Unlike Madones of the past though, Trek have produced their own micro-adjust carbon seatpost and XXX integrated bar and stem for added aerodynamics and stiffness. Thankfully these come with their own specifically designed computer and light mounts.


  • Designed in conjunction with Trek Factory Racing Professional Cycling Team
  • Full Shimano Ultegra eleven speed mechanical drivetrain
  • 600 Series OCLV carbon fibre, KVF (Kammtail Virtual Foil) tube shape
  • H2 fit, is a geometry that offers performance and comfort in equal measure
  • Invisible cable routing
  • Micro-adjust seatmast
  • Madone aero, integrated, direct mount brakes
  • BB90 bottom bracket
  • DuoTrap S compatible


FRAME Trek 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
FORKTrek Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem
HEADSET Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
STEMMadone XXX Integrated bar/stem, OCLV Carbon, 7-degree, aero top cap pocket, w/Blendr computer & light mounts
HANDLEBARMadone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF
HANDLEBAR TAPEBontrager Supertack tape
FRONT BRAKEMadone aero, integrated, direct mount
REAR BRAKEMadone aero, integrated, direct mount
BRAKE LEVERSShimano Ultegra
FRONT DERAILLEURShimano Ultegra, braze-on
SHIFT LEVERSShimano Ultegra, 11-speed
CASSETTEShimano Ultegra, 11-28, 11-speed
CHAINShimano Ultegra
CRANKSETShimano Ultegra, 50/34 (compact)
WHEELSBontrager Paradigm Elite Tubeless Ready
TYRESBontrager R3 Hard-Case Lite, aramid bead, 700x23c
SADDLEBontrager Paradigm RL, hollow titanium rails
SEATPOSTMadone micro-adjust carbon seatmast cap, 25mm offset

** Image shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.**

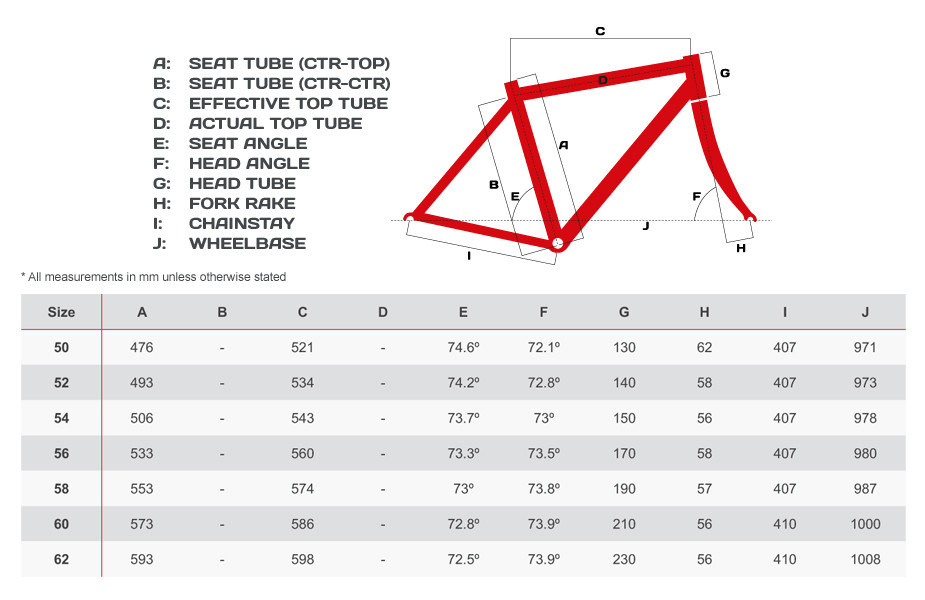

Size Guide
