Trek Boone 9 Disc Cyclocross Bike 2016

This item is no longer available to buy. Click here to view similar products

£ 3,200.00

Sitting a top Trek's illustrious cyclocross range, the Trek Boone 9 Disc Cyclocross Bike 2016 is as good as it gets. Developed with the master of cyclocross, Sven Nys, this is lighter, faster and smoother than ever. This is thanks to Trek's supreme 600 Series OCLV carbon, IsoSpeed decoupler and BB90. Full Shimano 6800 Ultegra 11-speed components with Shimano RS685 hydraulic disc brakes guarantees the best performance.

Trek Boone 9 Disc Cyclocross Bike 2016

The range topping Trek Boone 9 Disc Cyclocross Bike 2016 really is a thing of beauty. Designed with the help of Sven Nys, and all of his 140 competitive race victories, Trek have been able to improve on an bike that was already a world leader. Now you are getting a lighter, faster and smoother cyclocross bike.

Working with Nys, and other professional riders has enabled Trek to give you a race ready machine with the CX geometry produced in Trek's supreme 600 Series OCLV carbon to match.

The carbon forks are designed to offer a large tyre clearance, allowing you to ride a multitude of different tyre sizes. For this model the carbon fibre even extends to include the steerer. Another performance orientated feature is the cable routing, which reduces friction for the sharpest actuations in all conditions. The routing is even compatible with electronic groupsets, with no requirement for unsightly cable ties or tape.

All forms of riding are catered for by the post mounted Shimano RS685 hydraulic disc brakes with 160 millimetre rotors. Hydraulic units are at the forefront of this braking revolution, sweeping the cycling industry, with unprecedented braking force and modulation. This improved stopping power has necessitated the incorporation of a 15 millimetre front through axle to give you the most precise steering and control. Do not worry though, the quick release feature still allows for rapid wheel changes.

Another exciting feature is the IsoSpeed technology that allows you to take on any terrain. To accomplish this in comfort, Trek have designed the seat tube to be able to rotate separately from the top-tube-to-seatstay junction. This provides vertical compliance at twice the level of any other bike. This means you will be able to ride flat out for more time than anyone else. Comfort is further enhanced by the No-cut Ride Tuned seatmast to keep you in top form. For the Boone 9, this technology has been extended to the Bontrager Race Lite IsoZone handlebar. Your hands are particularly vulnerable, so the 20% reduction in vibration displacement is a welcome addition to reduce fatigue and to improve control.

It is also brilliant to see that this years model has stepped up to 11-speed thanks to the excellent Shimano Ultegra 6800 groupset. This is finished off with Bontrager Race Lite components, for added comfort and a lightweight setup as well as Bontrager Affinity Elite Tubeless Ready wheels that offer bulletproof reliability, roll incredibly well and are lightweight. Most importantly they are tubeless ready, so no messing around with a tubeless conversion.

This bike is clearly set up as a race ready cyclocross machine, crying out for you to pin on a race number. However, it would be equally at home as a tough commuter, with the vanishing mudguard mounts allowing you to install a set of mudguards for all weather riding.


  • Carbon fibre cyclocross bike
  • 600-Series OCLV carbon fibre
  • Full carbon fibre fork with carbon steerer
  • CX race geometry
  • Adjustable, performance internal cable routing (electronic groupset ready)
  • IsoSpeed decoupler and fork with IsoZone handlebar
  • Rear carbon dropouts
  • Ride Tuned seatmast
  • 11-speed full Shimano Ultegra 6800 groupset
  • BB90
  • 3S integrated chain keeper to keep you riding
  • Powerful and dependable Shimano RS685 hydraulic disc brakes

Upgrades from Trek Boone 5 Disc

  • Full Shimano Ultegra drivetrain
  • Bontrager Affinity Elite TLR wheelset
  • Full carbon fork with carbon steerer
  • Bontrager Paradigm RL saddle with hollow Ti rails
  • Bontrager Race Lite IsoZone handlebar


  • FRAME Trek 600 Series OCLV Carbon, IsoSpeed, Ride Tuned seatmast, E2 tapered head tube, Weather Sealed, BB90, internal control routing, 3S chain keeper, disc balanced post mount, hidden mudguard mounts

  • FORK Trek IsoSpeed Cross carbon disc, carbon E2 steerer, 15mm thru-axle

  • HEADSET FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom

  • STEM Bontrager Race X Lite, 31.8 mm, 7-degree

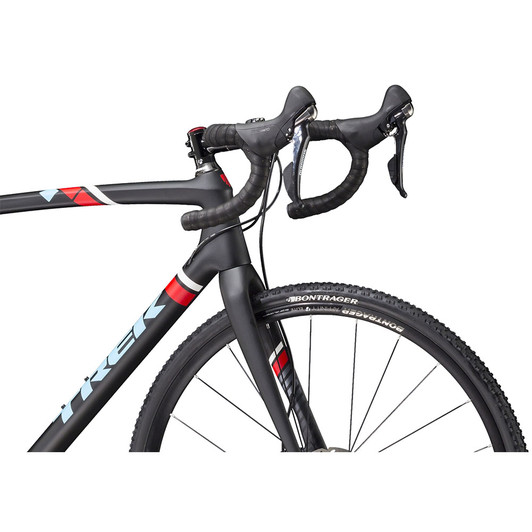

  • HANDLEBARS Bontrager Race Lite IsoZone, VR-CF, 31.8 mm

  • TAPE Bontrager gel cork tape

  • FRONT BRAKE Shimano RS685 hydraulic disc, 160 mm rotors

  • REAR BRAKE Shimano RS685 hydraulic disc, 160 mm rotors

  • FRONT DERAILLEUR Shimano Ultegra 6800, braze-on

  • REAR DERAILLEUR Shimano Ultegra 6800, 11-speed

  • SHIFT LEVERS Shimano RS685 hydraulic, 11-speed

  • CASSETTE SShimano Ultegra 6800, 11-28, 11-speed

  • CRANKSET Shimano Ultegra 6800


  • PEDALS n/a

  • WHEELSET Bontrager Affinity Elite Tubeless Ready, 15 mm front

  • TYRES Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700 x 32c

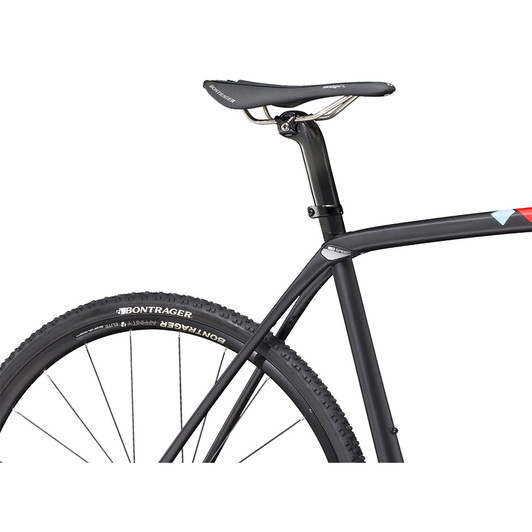

  • SADDLE Bontrager Paradigm RL, hollow titanium rails

  • SEATPOST Bontrager Ride Tuned carbon seatmast cap, 20 mm offset

Image shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
