Ride into the future on the Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017. A top-end trail bike in its own right, the addition of Specialized's Turbo technology provides up to 530 watts of additional pedal power so any hill, no matter how big or steep, can be conquered.
Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017
Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017
When designing the Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017, Specialized started by building a trail bike with all the hallmarks that their mountain bikes are known for, while streamlining the design for full integration of their Turbo technology. This means that you get a roomy top tube for an easy fit, ultra-short chainstays for nimble handling and a low bottom bracket that makes the bike feels glued to the trail.
Then comes the efficient and powerful Turbo technology, mating the battery and motor into the M5 frame in a new way. The exclusive, custom-tuned motor smoothly and quietly puts out up to 530 watts of additional power to the pedals to make climbing nearly effortless, and the output is fully adjustable to conserve energy. At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, is strategically placed for optimal weight distribution.
This version also has a 140mm RockShox Pike RC fork, SRAM Guide RS brakes, and a SRAM one-by groupset. It also features Specialized's new 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail. Add to this, Specialized's powerful Mission Control App for full control of the Turbo technology and an integrated Trail Display with all of the ride metrics you need, and you're looking at the future of trail bikes.

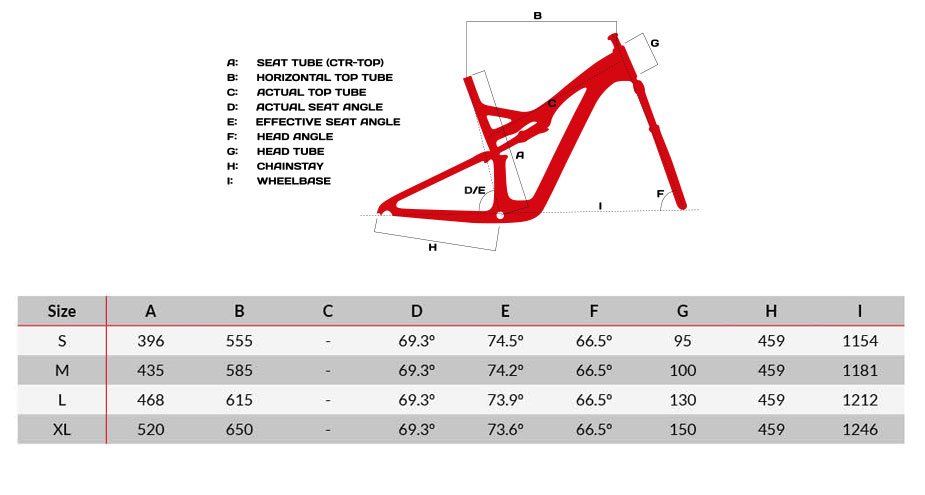

M5 Premium Aluminium construction is paired with the Trail 6Fattie Geometry to support a ride that provides slack, confident handling, maximum efficiency, and more fun. The frame also features an integrated battery mount at the down tube for fast and easy battery removal, plus a forged and braced motor mount at the bottom bracket. This keeps the aesthetic streamlined and the weight distribution perfectly balanced. Lastly, you'll find fully enclosed internal cable routing for a clean look and even cleaner cables, and internal routing for a Command Post IR.
FOX FLOAT Factory rear shock offers plush performance over any type of terrain, while the Rx Trail Tune provides a more supple and responsive feel both up and down the trail. The shock also includes AUTOSAG, which makes for a simplified set up.
RockShox Pike RC fork features a 15x110mm Maxle Ultimate thru-axle and 140mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
Roval Traverse 650b wheels feature an ultra-wide 38mm internal width that allows for increased tyre volume, which equates to more suppleness, traction, and fun throughout your ride.
The exclusive motor is custom-tuned to deliver the right amount of power for the rider's needs. Not ending there, its fully integrated, lightweight Li-Ion battery delivers power both smoother and quieter than anything in its class. The system provides an added 530W/90Nm of pedal-assist power output to take the sting out of the harshest climbs, and it's fully rechargeable in a short 3.5 hours. The battery is easily removable and features an incredibly high IP 67 waterproof rating against dirt, water, and debris.
Please note: Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
- FRAME: Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel
- REAR SHOCK: FOX FLOAT Factory, Rx Trail Tune, AUTOSAG, DPS damper, Kashima coating, rebound and 3-position compression and Open adjust, 197x47.6mm
- FORK: RockShox Pike RC 29/27.5+, Solo Air, compression and rebound adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 51mm offset, 140mm travel
- STEM: Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
- HANDLEBARS: Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 750mm, 31.8mm
- GRIPS: Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness

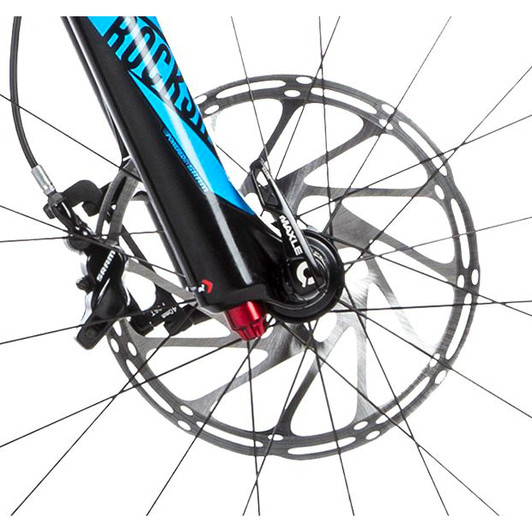

- FRONT BRAKE: SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200mm rotor
- REAR BRAKE: SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor
- FRONT DERAILLEUR: N/A
- REAR DERAILLEUR: SRAM X01, 11-speed, carbon cage
- SHIFT LEVERS: SRAM X1, 11-speed, trigger
- CASSETTE: SRAM XG-1180, 11-speed, 10-42t
- CHAIN: SRAM PCX1, 11-speed w/PowerLink
- CRANKSET: Custom alloy crankarms, 32T ring
- FRONT HUB: Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
- REAR HUB: Roval Traverse, DT Swiss internals, sealed cartridge bearings, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
- SPOKES: DT Swiss Revolution
- RIMS: Roval Traverse 650b, hookless alloy, 38mm inner width, 24/28h, tubeless ready
- FRONT TYRE: Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready
- REAR TYRE: Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready
- SADDLE: Specialized Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
- SEATPOST: Specialized Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm
- MOTOR: Exclusive, custom tuned for Specialized, Trail Tune, 250W
- BATTERY: Custom Levo Battery, 504Wh, 40x3.5Ah, ANT+/Bluetooth® connectivity, IP 67
- CHARGER: Custom Specialized, 42V4A, with Rosenberger plug
- WIRING: Custom harness, with Rosenberger plug
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), rotate and tighten the handlebars following the included detailed instructions or by watching our video and using the provided FREE tools.
To see how you build your new bike once you receive it, please see our bike assembly page here.
Please note all bikes collected from our shop, are built, tested and ready to ride.
PRODUCT REF: 16LEVOFSRFATTIE
