The Pinarello Dogma F8 Frameset 685 -White/ Black builds on one of the most prestigious names in world cycling to deliver a truly astonishing frameset. Constructed from the proprietary Toray T1100 1K Dream carbon fibre, this frameset is incredibly light and stiff while the CFD frame and fork design ensures aerodynamic performance.
Pinarello Dogma F8 Frameset 685 -White/ Black
Pinarello Dogma F8 Frameset 685 -White/ Black
Pinarello have gone with an all new exclusive material for the Dogma F8, Torayca T1100 1k Dream Carbon with Nano-Alloy technology. With an outstanding stiffness to weight ratio and its use as the outer skin of many modern aircraft, it is sensational.
Pinarello capitalised on Jaguar's engineering expertise by using their CFD (Computational Fluid Dynamics) technology as well as the existing 65.1 Dogma as a guideline. Through this process with over 70 configurations of the frame and 300 CFD analysis cycles the most aerodynamically efficient frame was generated.
Flatback is the name given to the new tube shaping which was used to eliminate the turbulence created. Sticking to the UCI limit of a 3:1 tube profile, the overall aerodynamic efficiency was increased. It still rides as well as the original Dogma yet is now even stiffer.
The fork is integrated into the tapered 1 1/8 to 1 1/2in head tube and the flatback downtube. Pinarello have chosen to stand by the threaded Italian bottom bracket it has used previously, due to their belief in its stiffness and reliability. The F8's asymmetric chainstays are combined with the new Onda RS F8 seatstays.
Positioned to meet the seat tube lower down than on the 65.1, this hides the rear brake and the Twinforce integrated seat clamp. This increases the airflow past this section of the bike. The extensive CFD testing revealed that it was more aerodynamic to mount the seat tube bottle cage lower to reduce drag. Based on this Pinarello have chosen to include three bolt holes on the seat tube to satisfy the needs of every rider.
Attentively engineered internal cable routing allows the choice of mechanical or electronic gearing systems, without impacting on the bike's aerodynamics. Included are interchangeable frame stops at the entry and exit points on the frame that can be swapped throughout the frames lifetime, should the rider choose to change between electronic and mechanical set-ups. The Carbon Air8 seatpost also houses the battery for both Shimano Di2 and Campagnolo EPS battery packs.

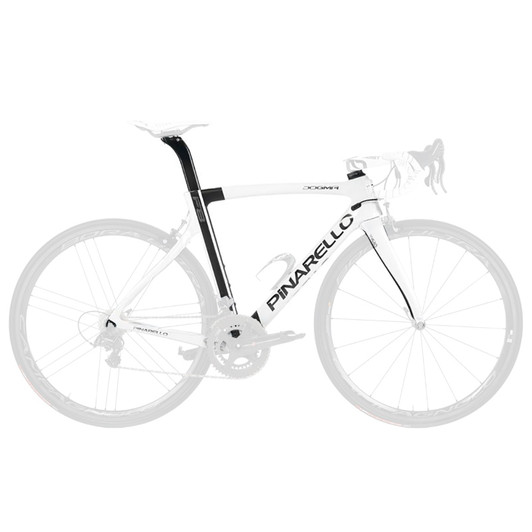

Image shown for representation of colourway only, specification subject to change at any time.
- FRAME: Pinarello Toray T1100 1K Dream Carbon Fibre
- FORK: Pinarello Toray T1100 1K Dream Carbon Fibre
- HEADSET: Pinarello 1 1/8" - 1 1/2"
- BOTTOM BRACKET: Threaded Italian
- SEAT POST: Pinarello Carbon Air8
PRODUCT REF: DOGMA-F8-685
