Pinarello Dogma F10X X-Light Road Frameset

£6,099.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 754045

Aiming to provide effortless performance and improved handling, Pinarello unleash new technical and aesthetic evolution with their superior all round Dogma F10X Road Frameset.

Combining improved aerodynamics and stiffness, this frame is perfect for sprints, climbs and descents with precision handling and compliant stiffness.

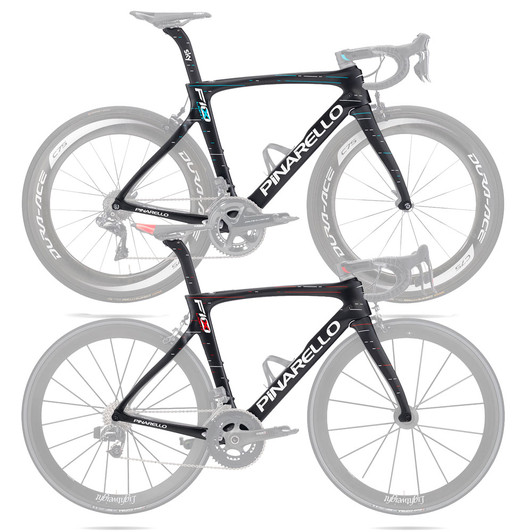

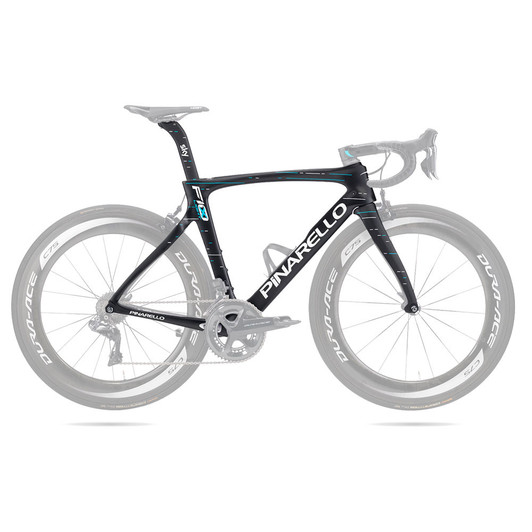

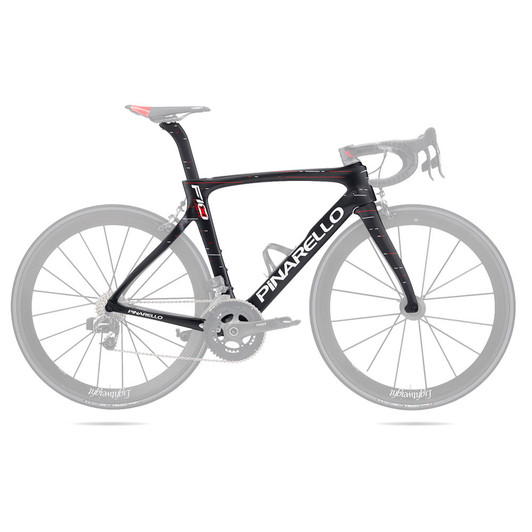

Pinarello Dogma F10X Road Frameset

Built in close collaboration with Team Sky, Pinarello presents unrivalled and consistent evolution when designing their Dogma F10X Road Frameset. Not too dissimilar from the podium winning F8, the F10X inherits the geometry and handling of its predecessor but with improved aerodynamics, lightness and stiffness.

Designed to be lighter and faster, Pinarello redeveloped the F10 without compromising its superior ride quality. With 20% improved aerodynamics, this incredibly lightweight frameset inherits the concave downtube from the record breaking Bolide TT. Twinned with the Flatback design of the Dogma F8, reducing air drag around the water bottle by 12.6% and improving lateral stiffness, the F10X proves to be an incredibly compliant all round frame, delivering efficient performance, whatever the conditions.

Experience the superior handling of the featured ForkFlap, reducing aero drag by 10%, and providing the ability to orderly direct the aerodynamic flows created around the wheel, the F10X is perfect for precision manoeuvres at high speed.

Designed for power, the asymmetric bottom bracket composition boasts 7% increased stiffness, with a bulkier drivetrain for increased power transfer so you can push harder with less flex.

With technology at the heart of this brand, Pinarello creates a connection between the frame and electronics with E-Link, offering the extra bonus of practicality and safety. Designed with improved aerodynamics in mind, the Shimano Di2 compatible E-Link enables the fixture of electronic groupsets inside the downtube, with easy accessibility to cables and battery.

Weighing in at 760g this frame never feels out of place, providing incredible performance in sprints, climbs, and descents.

Video is unable to play due to Privacy Settings.

Adjust your Cookie Preferences to Opt-in "YES" to "Functional Cookies".

Features

  • E-Link: Seamlessly integrate electronic shifting inside downtube.

  • Flatback: Improved aerodynamics of 12.6% and lateral stiffness.

  • ForkFlap: Reduces drag by 10% for improved precision handling.

  • Lightweight Frame: 760g (53cm frame).

  • Optimised concave downtube: overall improved aerodynamics of 20%.

  • Internal cable routing.

  • UCI® approved

  • Weight: 760 grams (Claimed size 53).

Please note: The maximum rider weight for this frameset is 80kg.

Technical Specification

FRAME Pinarello Dogma F10X Asymmetric frame, Torayca® T1100 1K DreamCarbon Fibre, ICR™ - Internal cable routing, removable front derailleur hanger, 3XAir™ two positions available for the second bottle
FORK Pinarello ONDA F10 carbon fibre with ForkFlap™
HEADSET 1” 1/8 - 1” 1/2
BOTTOM BRACKET Italian threaded
SEAT BINDER TwinForce
SEAT POST Pinarello carbon seatpost
ELECTRONIC GEARING COMPATIBILITY Think2 System with E-Link™
