Kinesis Racelight Aithein Frameset
The Kinesis Racelight Aithein Frameset brings a whole new level to the Kinesis Racelight range. With stylish looks and racer geometry, Kinesis have worked hard to develop the alloy road category. The Aithein is as at home on a leisurely Sunday ride as it is in the peloton of your local criterium series.

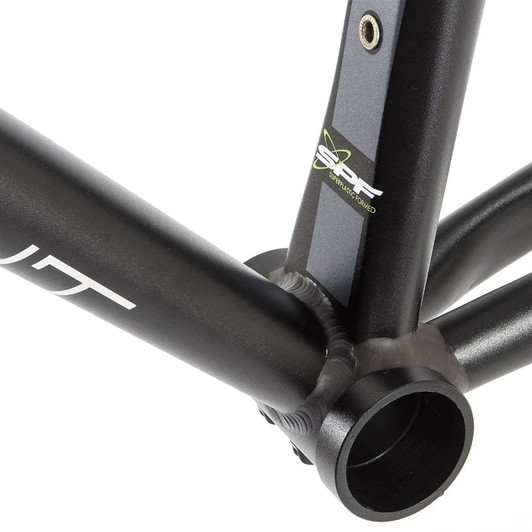

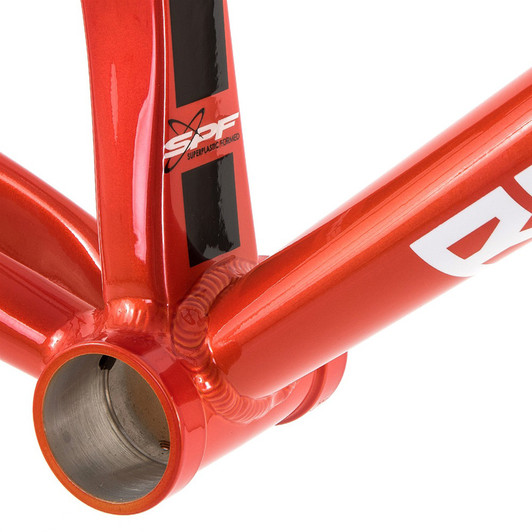

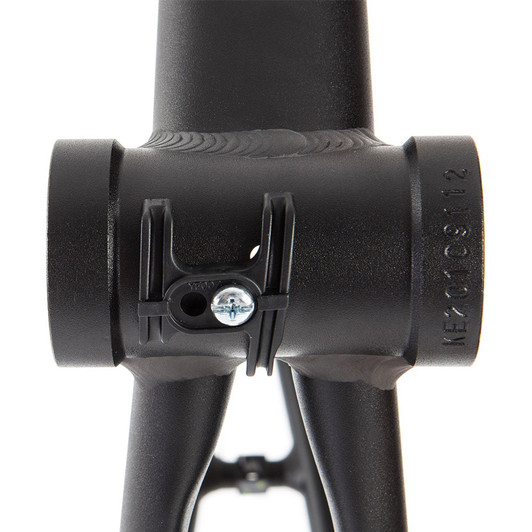

While many manufacturers have chosen spend their time and money developing carbon over recent years. Kinesis have applied the same level of development into it's aluminium, believing they have created a frame that rivals carbon in many ways but out performs it on price. The advanced 'Anti Gravity' seat tube is the result of such development, adding tremendous core strength to the bike. This allowed Kinesis to lighten the main tubes, which goes some way into helping the Aithein be super lightweight at only 1200g in a 56cm. The frame housing a super wide BB86 bottom bracket ensures efficient conversion of rider input to maximum power, perfect for a breakaway attempt or just stamping out of the corners.

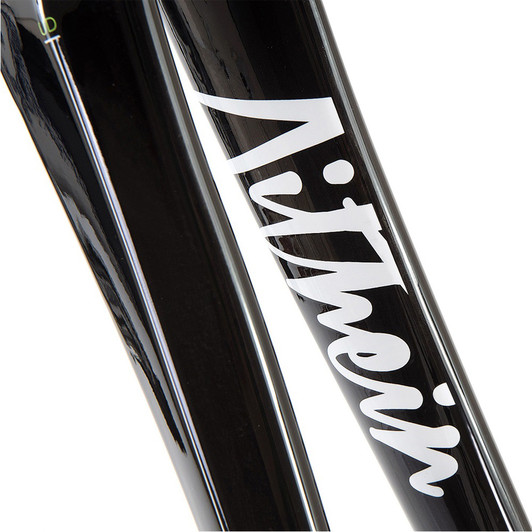

The monocoque carbon fork weighs in at a nimble 330g. Slotted perfectly into a tapered head tube the tapered 1.5" fork, adds both stiffness and comfort to the ride.

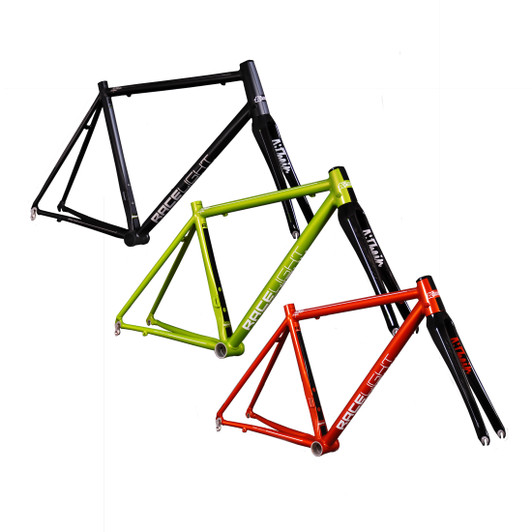

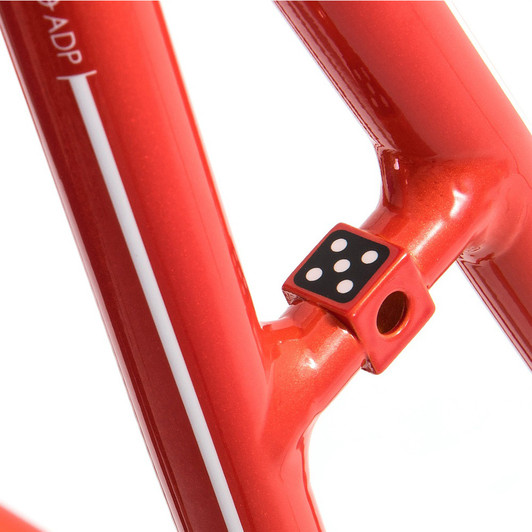

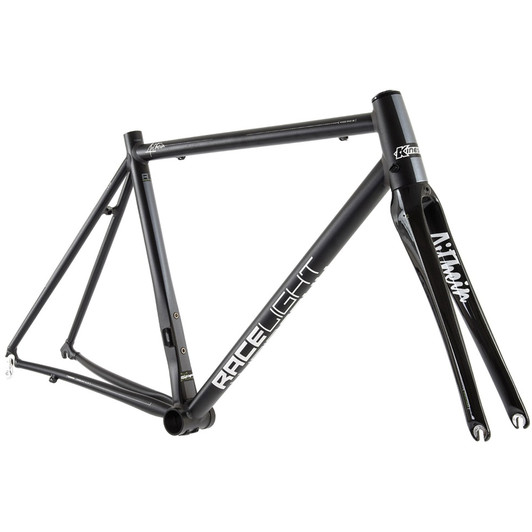

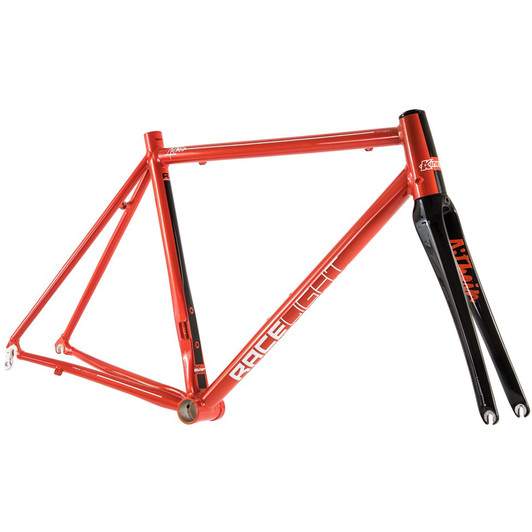

The frame is finished with Kinesis' usual tough anodised finish and etched graphics, which include dice styled into the brake mounting point. Available in three striking finishes (Sweet Orange, Sick Green and Black Anodised) the Aithein will not only turn heads but has a style to suit every rider.
- Advanced aluminium
- BB86 bottom bracket

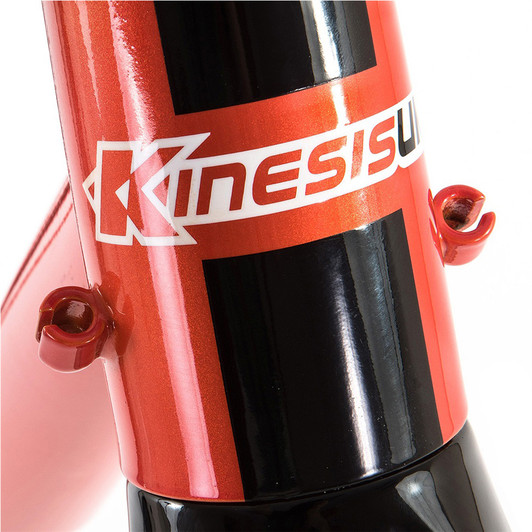

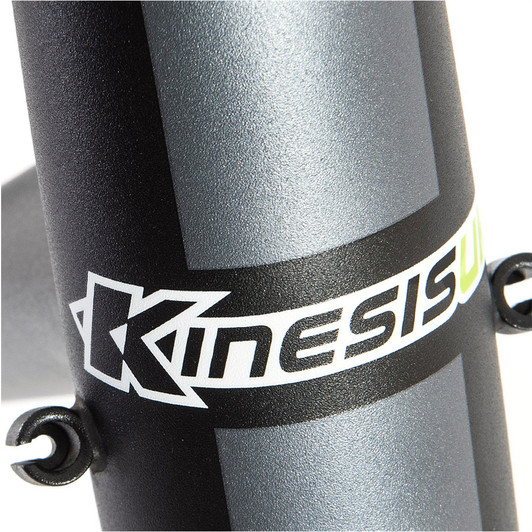

- Tapered headtube
- Three striking finishes
- Rider weight limit of 88.9kg
Specification
| FRAME | Kinesis International, Kinesium is a superb tubing for use in lightweight, high performance frames. Kinesium is enhanced 6000 series Aluminium alloy, which is 25% stronger than 6061 at the same weight level. BB86 |
| FORK | Kinesis Aithein uses a specially developed, 330g monocoque carbon, taper 1.5” fork. |
| HEADSET | Integrated, 41.8∅ upper, 51.8∅ lower, for taper head tube. FSA No.42/ACB headset included with frame. Both bearings are ‘ACB’, meaning ‘Angular Contact Bearings’. The head-tube seat angle is 45º. |
This frameset has a manufacturer's weight limit of 14st/88.9kg
Frame weights: 47cm – 1041g. 50cm – 1095g. 53cm – 1138g. 56cm – 1193g. 59cm – 1243g.

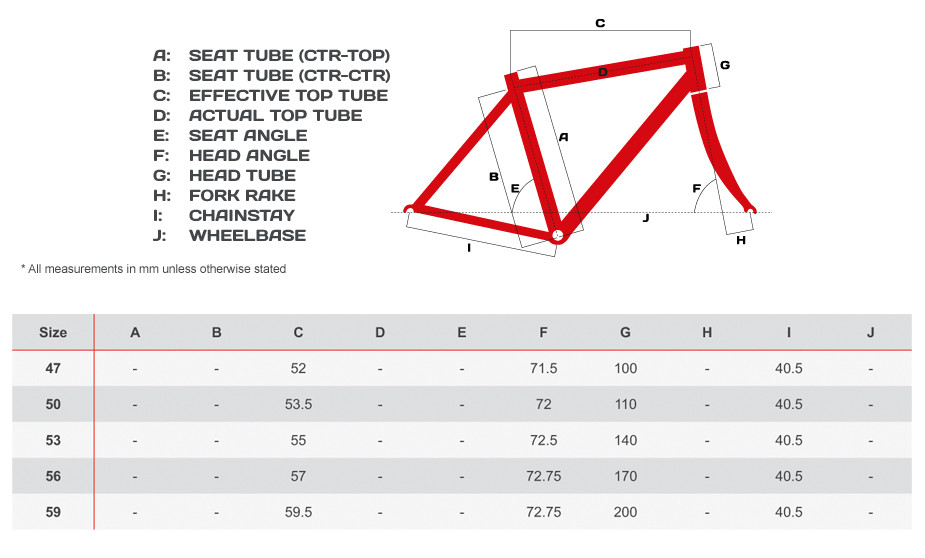

Technical Specification
