Focus Cayo Tiagra Road Bike 2016

This item is no longer available to buy. Click here to view similar products

MSP £ 1,149.00 , Save 35%
£ 749.00

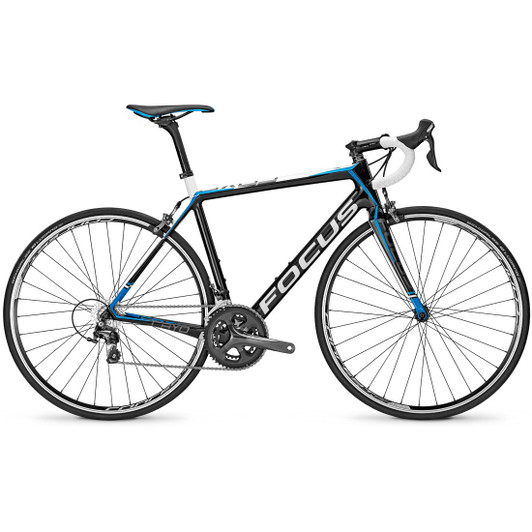

Put the fun into your road riding with the Focus Cayo Tiagra Road Bike 2016. Lightweight, thanks to its carbon fibre frameset, this bike also has the component set up to help you reach your cycling goals. Smooth shifting is provided in the form of Shimano's 10-speed Tiagra groupset.

Focus Cayo Tiagra Road Bike 2016

For any rider looking to get serious about their road cycling in the coming season, the Focus Cayo Tiagra Road Bike 2016 provides a great option for any cyclist who is looking for lightweight and reliable performance without the massive price tag. The marriage of the carbon fibre Cayo frameset with Shimano's smooth Tiagra 10-speed groupset makes this the perfect bike for getting the most out of your riding.

Shimano's Tiagra groupset provides both the shifting and braking on the Focus Cayo Tiagra Road Bike 2016. The 10-speed setup with its semi-compact crankset is ideal for just about any type of riding, with the gear ratio ideal for powering up and over climbs while also just as suitable for laying down the power on the flat or downhill.

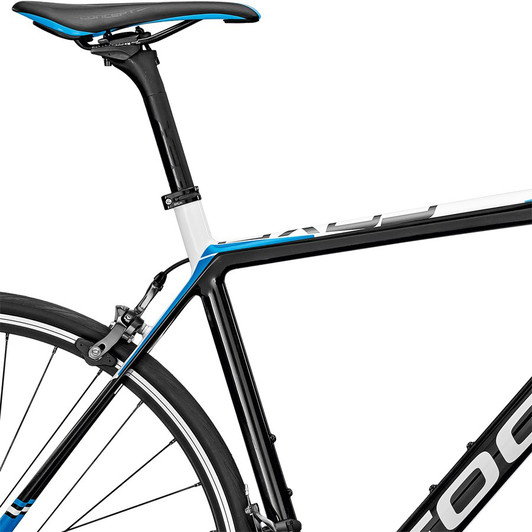

The Cayo frame comes with custom pipe diameters for each frame size. This offers an optimal ratio of weight to stiffness without sacrificing comfort. The inner installation of the cables is achieved by a removable plate, which is mounted on the front of the head tube. This ensures the cables are routed optimally and cleanly in the frame and are protected from the elements.

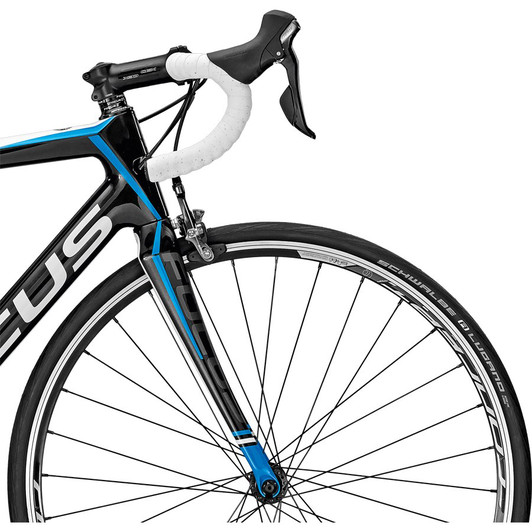

Also featuring is the tapered headtube. This design reduces steering weight while increasing the headset stiffness and overall handling compliance. Focus' pressfit30 bottom bracket, in conjunction with the large connection area to the frame, allows for the unencumbered transfer of power through the pedals and down into the road.

The smooth-rolling and grippy Concept EX wheelset coupled with the Schwalbe Lugano 622 X25 clincher tyres provides grip on the flat and in the corners with a compound that maintains traction in the wet or dry.


  • High performance road bike
  • Lightweight and stiff carbon fibre frameset
  • Internal cable routing
  • Reliable and smooth shifting with the Shimano Tiagra 4700 10-speed groupset


FRAME: Focus Cayo P2T Carbon PF30

FORK: Focus CRF 01 Carbon T4


STEM: Concept EX (length: Size 48=90 mm, Size 51/54=100 mm, Size 57=110 mm, Size 60=120 mm)

HANDLEBARS: Concept EX (width: Size 48/51=40 cm, Size 54=42 cm, Size 57/60=44 cm)

GRIPS: White bar tape

FRONT BRAKE: Shimano Tiagra 4700

REAR BRAKE: Shimano Tiagra 4700

BRAKE LEVERS: Shimano Tiagra 4700

FRONT DERAILLEUR: Shimano Tiagra 4700 10-Speed

REAR DERAILLEUR: Shimano Tiagra 4700 10-Speed

SHIFT LEVERS: Shimano Tiagra 4700 10-Speed

CASSETTE: Shimano Tiagra 4700 10-Speed 12-28

CHAIN: Shimano Tiagra 4700 10-Speed

CRANKSET: Shimano Tiagra 4700 10-Speed, 50-34




FRONT TYRE: Schwalbe Lugano clincher 622 X25

REAR TYRE: Schwalbe Lugano clincher 622 X25

SADDLE: Concept EX


Image shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
