Campagnolo Chorus Square Taper Bottom Bracket

£51.00
RRP £77.00 Save 34%

Check to see if we have it in stock - just select your colour and size.

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 94254

Campagnolo Chorus bottom brackets are square taper ISO and available with a 102mm spindle.

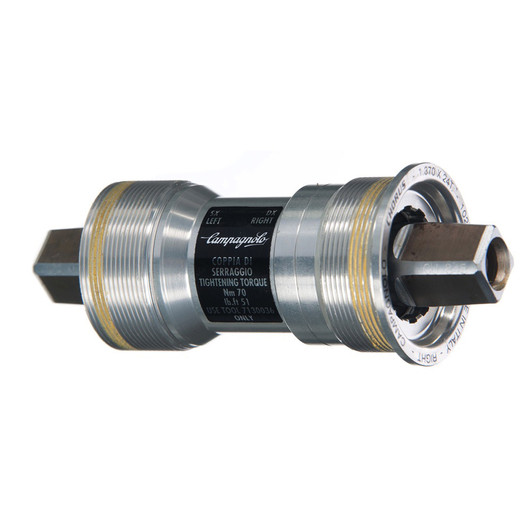

Campagnolo Chorus Square Taper Bottom Bracket

Campagnolo Chorus bottom brackets are square taper ISO and available with a 102mm spindle.

They have an aluminium spacer shell rather than the carbon fibre one found on Record versions, otherwise they are exactly the same. The Chorus bottom bracket unit features twin sealed bearings on the drive-side for improved durability.

This unit can be used with Record double chainsets if a more economical solution is required.

Features

  • Three, sealed cartridge style, bearings; two on the chainring side and one on the non-drive side
  • Weighs just 220 grams; only 30 grams more than Record
  • 17 mm cro-moly steel, 102 mm hollow spindle fits 8, 9 and 10 speed Campy Record and Chorus cranks from 1995 to present
  • Unique taper is not interchangeable with Shimano
  • Removable cups are machined from 7000 series aluminium alloy and are easily replaceable
  • Comes with British (1.37 inches x 24 threads per inch) or larger diameter, Italian cups (36 mm x 24 threads per inch). Spindles are identical and always 102 mm long
  • Fits either Record or Chorus square taper cranks
