Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017

£4,250.00

Charcoal/Cyan

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 16LEVOFSRFATTIE

Ride into the future on the Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017.

A top-end trail bike in its own right, the addition of Specialized's Turbo technology provides up to 530 watts of additional pedal power so any hill, no matter how big or steep, can be conquered.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017

When designing the Specialized Turbo LEVO Expert 6Fattie Mountain Bike 2017, Specialized started by building a trail bike with all the hallmarks that their mountain bikes are known for, while streamlining the design for full integration of their Turbo technology. This means that you get a roomy top tube for an easy fit, ultra-short chainstays for nimble handling and a low bottom bracket that makes the bike feels glued to the trail.

Then comes the efficient and powerful Turbo technology, mating the battery and motor into the M5 frame in a new way. The exclusive, custom-tuned motor smoothly and quietly puts out up to 530 watts of additional power to the pedals to make climbing nearly effortless, and the output is fully adjustable to conserve energy. At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, is strategically placed for optimal weight distribution.

This version also has a 140mm RockShox Pike RC fork, SRAM Guide RS brakes, and a SRAM one-by groupset. It also features Specialized's new 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail. Add to this, Specialized's powerful Mission Control App for full control of the Turbo technology and an integrated Trail Display with all of the ride metrics you need, and you're looking at the future of trail bikes.

Features:

  • M5 Premium Aluminium construction is paired with the Trail 6Fattie Geometry to support a ride that provides slack, confident handling, maximum efficiency, and more fun. The frame also features an integrated battery mount at the down tube for fast and easy battery removal, plus a forged and braced motor mount at the bottom bracket. This keeps the aesthetic streamlined and the weight distribution perfectly balanced. Lastly, you'll find fully enclosed internal cable routing for a clean look and even cleaner cables, and internal routing for a Command Post IR.

  • FOX FLOAT Factory rear shock offers plush performance over any type of terrain, while the Rx Trail Tune provides a more supple and responsive feel both up and down the trail. The shock also includes AUTOSAG, which makes for a simplified set up.

  • RockShox Pike RC fork features a 15x110mm Maxle Ultimate thru-axle and 140mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.

  • Roval Traverse 650b wheels feature an ultra-wide 38mm internal width that allows for increased tyre volume, which equates to more suppleness, traction, and fun throughout your ride.

  • The exclusive motor is custom-tuned to deliver the right amount of power for the rider's needs. Not ending there, its fully integrated, lightweight Li-Ion battery delivers power both smoother and quieter than anything in its class. The system provides an added 530W/90Nm of pedal-assist power output to take the sting out of the harshest climbs, and it's fully rechargeable in a short 3.5 hours. The battery is easily removable and features an incredibly high IP 67 waterproof rating against dirt, water, and debris.

Please note: Image shown for representation of colourway only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.

Technical Specification

FRAME Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel
REAR SHOCK FOX FLOAT Factory, Rx Trail Tune, AUTOSAG, DPS damper, Kashima coating, rebound and 3-position compression and Open adjust, 197x47.6mm
FORK RockShox Pike RC 29/27.5+, Solo Air, compression and rebound adjust, tapered steerer, 15x110mm Maxle Stealth thru-axle, 51mm offset, 140mm travel
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS Specialized, 7050 alloy, 8-backsweep, 6-upsweep, 10mm rise, 750mm, 31.8mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M

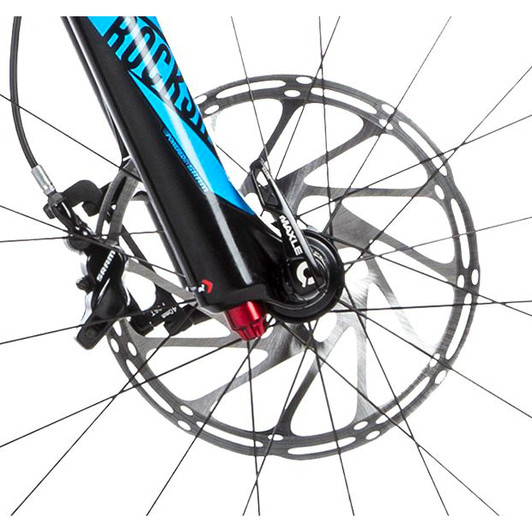

FRONT BRAKE SRAM Guide RS carbon, hydraulic disc, organic pads, carbon lever, Guide S4 4-piston caliper, 200mm rotor
REAR BRAKE SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm rotor
FRONT DERAILLEUR N/A
REAR DERAILLEUR SRAM X01, 11-speed, carbon cage
SHIFT LEVERS SRAM X1, 11-speed, trigger
CASSETTE SRAM XG-1180, 11-speed, 10-42t
CHAIN SRAM PCX1, 11-speed w/PowerLink
CRANKSET Custom alloy crankarms, 32T ring
FRONT HUB Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
REAR HUB Roval Traverse, DT Swiss internals, sealed cartridge bearings, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
SPOKES DT Swiss Revolution
RIMS Roval Traverse 650b, hookless alloy, 38mm inner width, 24/28h, tubeless ready
FRONT TYRE Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TYRE Specialized Purgatory, GRID casing, 650bx3.0", 60TPI, Aramid folding bead, 2Bliss Ready
SADDLE Specialized Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S
MOTOR Exclusive, custom tuned for Specialized, Trail Tune, 250W
BATTERY Custom Levo Battery, 504Wh, 40x3.5Ah, ANT+/Bluetooth® connectivity, IP 67
CHARGER Custom Specialized, 42V4A, with Rosenberger plug
WIRING Custom harness, with Rosenberger plug
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.
