Kinesis Racelight 4S Disc Frameset

MSP  £ 699.99    SAVE 10%
YOUR PRICE: £ 629.99
Choose Product Options

1 in stock, ready to dispatch.

UK Next Working Day delivery available if ordered before 3pm. Deliveries are made Monday to Friday, excludes Bank Holidays. Saturday delivery also available if ordered before 1pm Friday.

Add to Basket


The best do-it-all bike just got better. The Kinesis Racelight 4S Disc Frameset is ready for disc or calliper brakes, features a new carbon fork and has internal cable routing ready for electronic groupsets. This adds to the 32 mm tyre clearance and mudguard eyelets to makes this the perfect bike for winter or summer.

Collection  UK  EU  Worldwide

Price Match

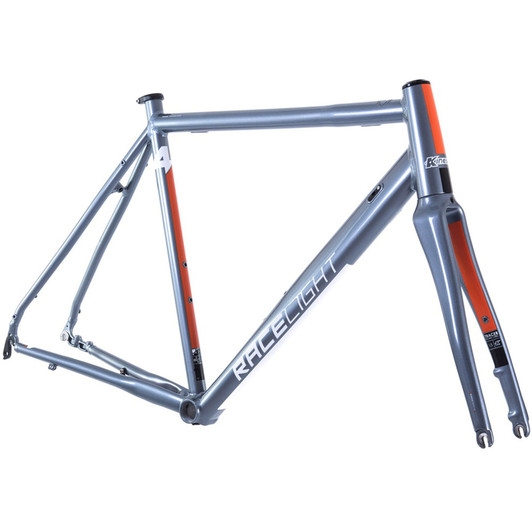

Kinesis Racelight 4S Disc Frameset

The best winter bike just got better. This years Kinesis Racelight 4S frameset now comes in this option with mounts for disc brakes. This is not all, as there is also now internal cable routing and a brand new carbon fibre fork to ensure that this years bike maintains the award-winning reputation of Racelight 4S frames.

The addition of disc brakes to this frame is a highly logical progression. Racelight 4S frames have always stood out with their eyelets for mudguards, and clearance for 32 mm tyres, on a bike that still has the geometry and appearance of a performance road bike, thus making them the perfect all year round bikes. Disc brakes now mean these frames are even better suited to wet and muddy roads as they provide the most dependable all-weather braking.

Fantastically, though, you are not limited to disc brakes as this frame will also work with calliper brakes. Brilliantly, this opens up the possibility to run it with discs through the winter, then swap to rim brakes for summer racing. Thanks to the use of the new Shimano flat mount standard, the disc mounts are very minimal so when using calliper brakes there are no unsightly mounts.

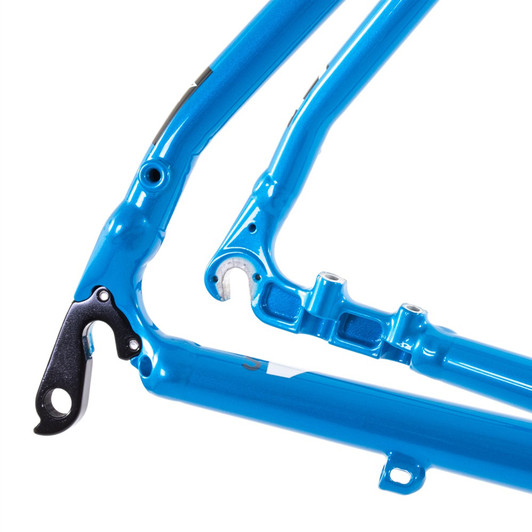

Adaptability is further added to by the dropouts, which are adaptable between 130mm quick release and 135mm quick release by means of the Kinesis dropout adaptors.

Despite all of the new features, Kinesis have ensured that the basics are done superbly as well. The smooth welded Kinesium of the frame features a BSA threaded 68mm bottom bracket, so there is creaking or clicking issues that you might get with a press-fit option. This also seals a key area against the elements. Also, the tubing is butted and shaped to give a stiff front triangle for performance, whilst the rear is supple enough for rough roads and long rides thanks to the skinny curved stays.

The combination of disc brake mounts and internal routing for electronic groupsets means that this frame is ready for the future. Additionally, setting up with hydraulic disc brakes and internal electronic shifting would make this the best prepared and maintenance-free winter bike possible that is still ready to tear it up in summer with your improved fitness from all year riding.


FRAME: Kinesis Racelight 4S 6000 Aluminium with 'Kinesium' tube-set with mudguard eyelets, internal cable routing (electronic groupset ready), 68mm BSA threaded bottom bracket, Inboard Shimano Flat-mount, Tapered headtube (27.2 mm seat post required)

FORK: All-New Carbon fibre fork with Flat mounts and mudguard eyelets

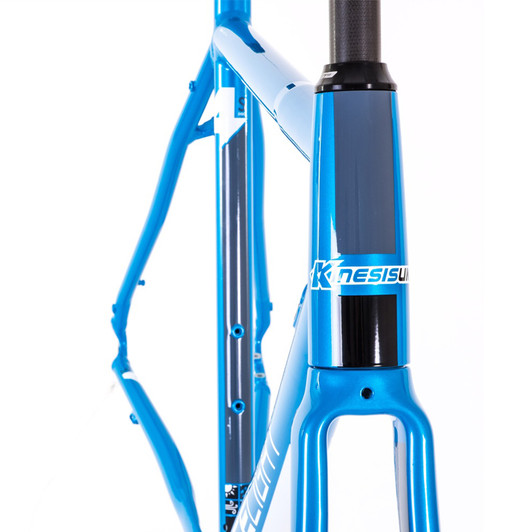

HEADSET: FSA Taper headset: 1” 1/8 top race, tapered to 1” ½ bottom 36x45 integrated FSA type

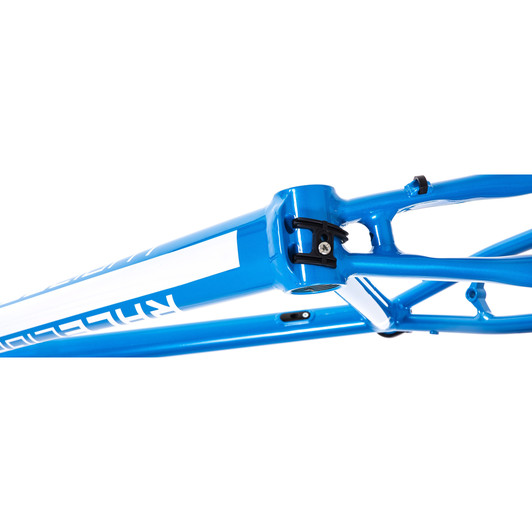

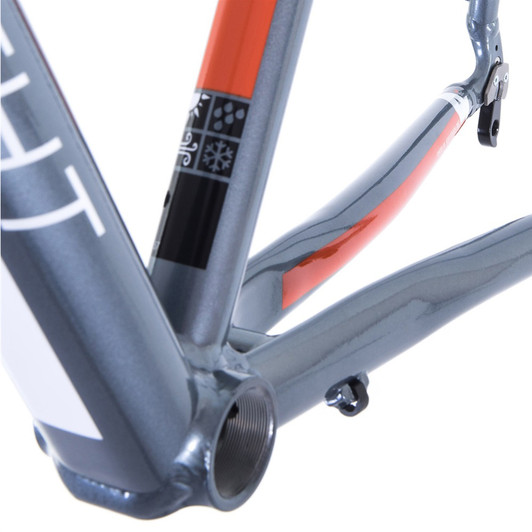

BOTTOM BRACKET: 68mm BSA threaded bottom bracket shell

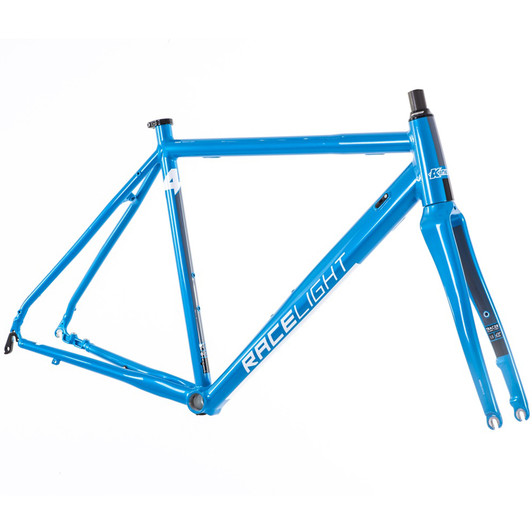

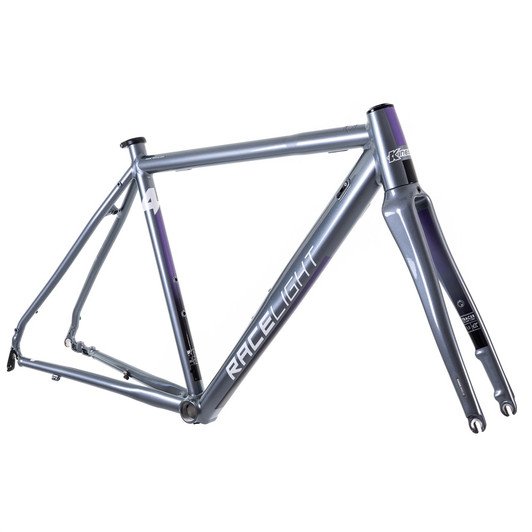

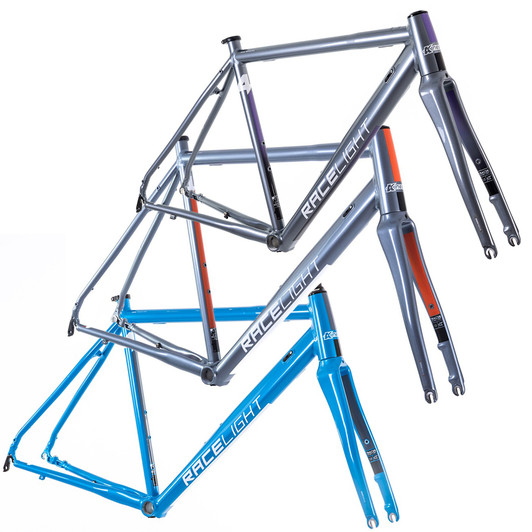

Image shown for representation of colour way only, specification subject to change at any time.

  • Inboard Shimano Flat-mount on frame, with post mount adapter included, as well as the flat mount on the brand new carbon fork make this ready for disc brakes for dependable all-weather performance
  • Also compatible with calliper brakes

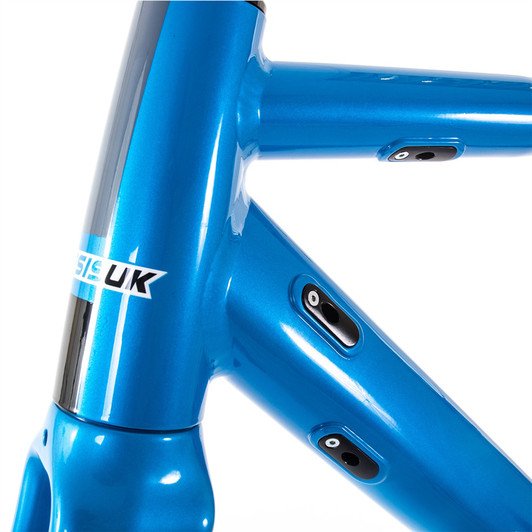

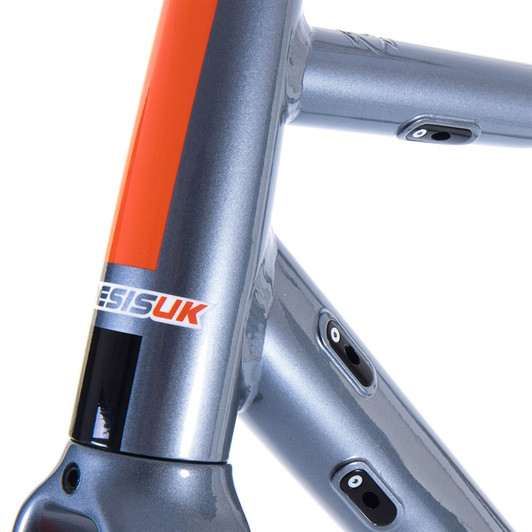

  • Internal cable routing that is compatible with electronic groupsets
  • Smooth welded Kinesium frame is stiff for performance, but compliant where required for all day comfort

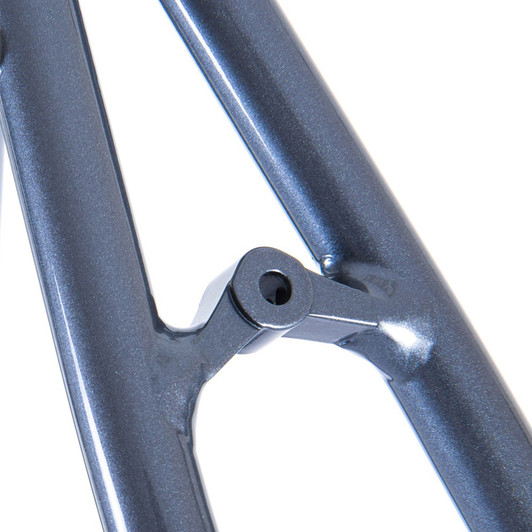

  • Mudguard eyelets

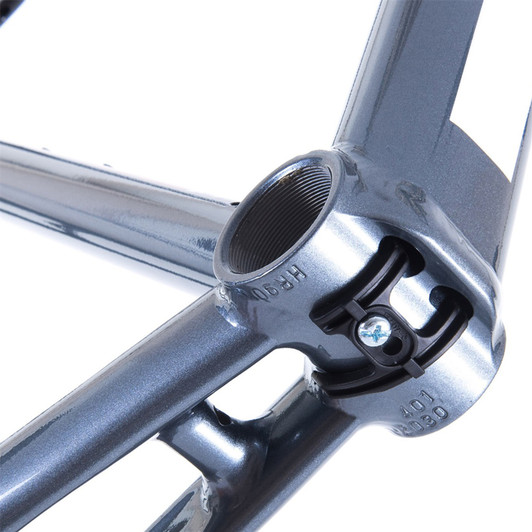

  • 68mm BSA threaded bottom bracket provides a better seal than press fit
  • The removable bolt in the dropout spacers means you can run either 130 mm or 135 mm rear quick release hubs

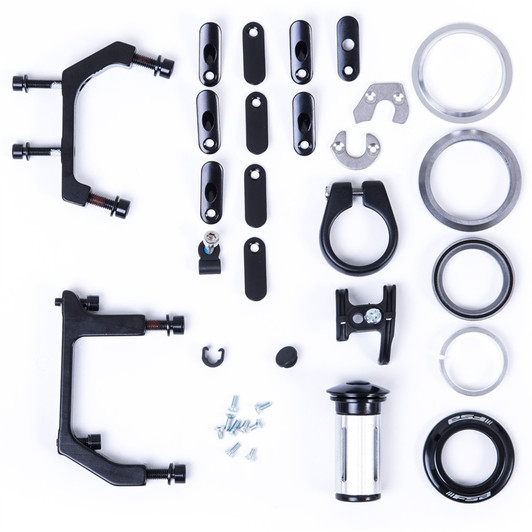

  • Includes: fork, headset, seat clamp and two 160 mm post mount adaptors

Representative Example Of Finance For Kinesis Racelight 4S Disc Frameset

Interest Rate (Fixed) 0%
Deposit 10%
Monthly Repayment £94.50
Final Installment £94.49
Cash Price £629.99
Deposit to Pay £63.00
Loan Amount £566.99
Cost of Loan £0.00
Total Amount Payable £629.99
Number of Repayments (Monthly) 6

How do I complete my order using finance?

Follow the four easy steps below to complete your order

  1. 1Add item to your basket
  2. 2Select V12 Retail Finance as your payment method
  3. 3Complete your online finance application
  4. 4Receive your instant decision

Read more about buying on finance Please note finance is only available to UK residents.

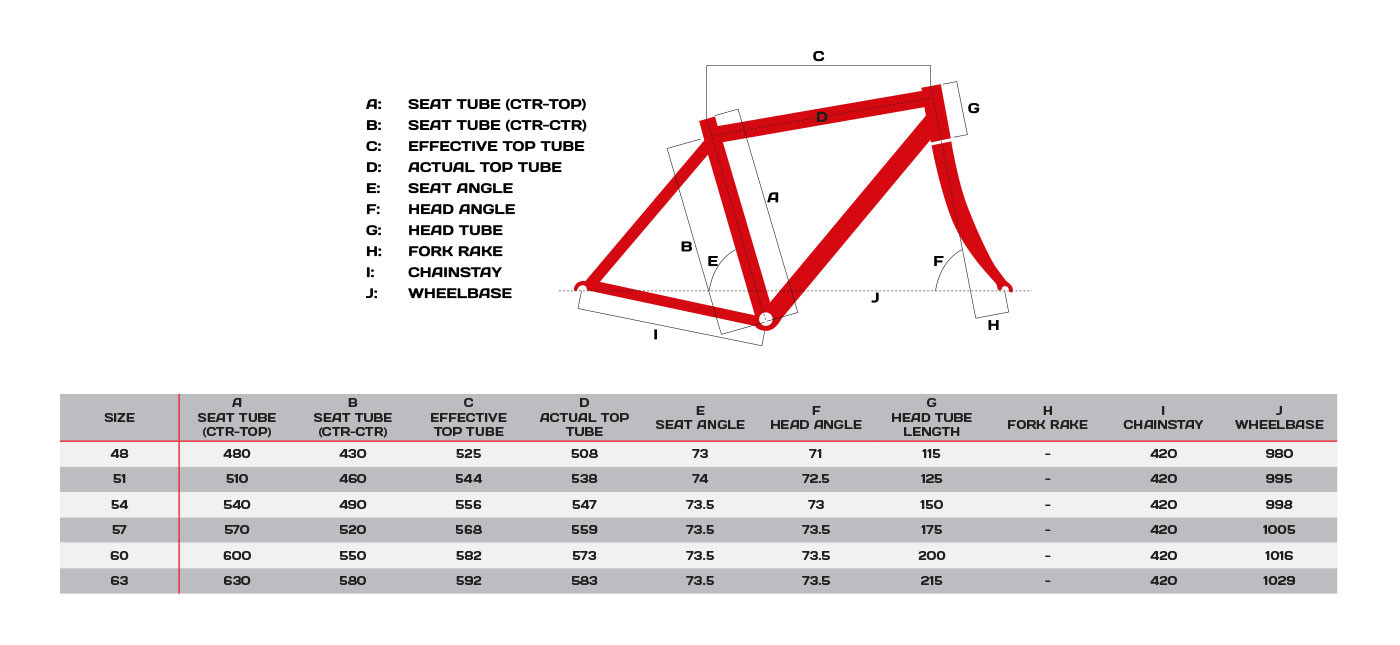

Size Guide
